With End Strip GB-9859/C

Group	Cabin Filter
Height, mm	18
Lenght, mm	198
Width, mm	217
Status	available
Comment	Carbon

Attention! The provided filter parameters are for reference only and do not take into account tolerances

Print Where buy

‹ ›

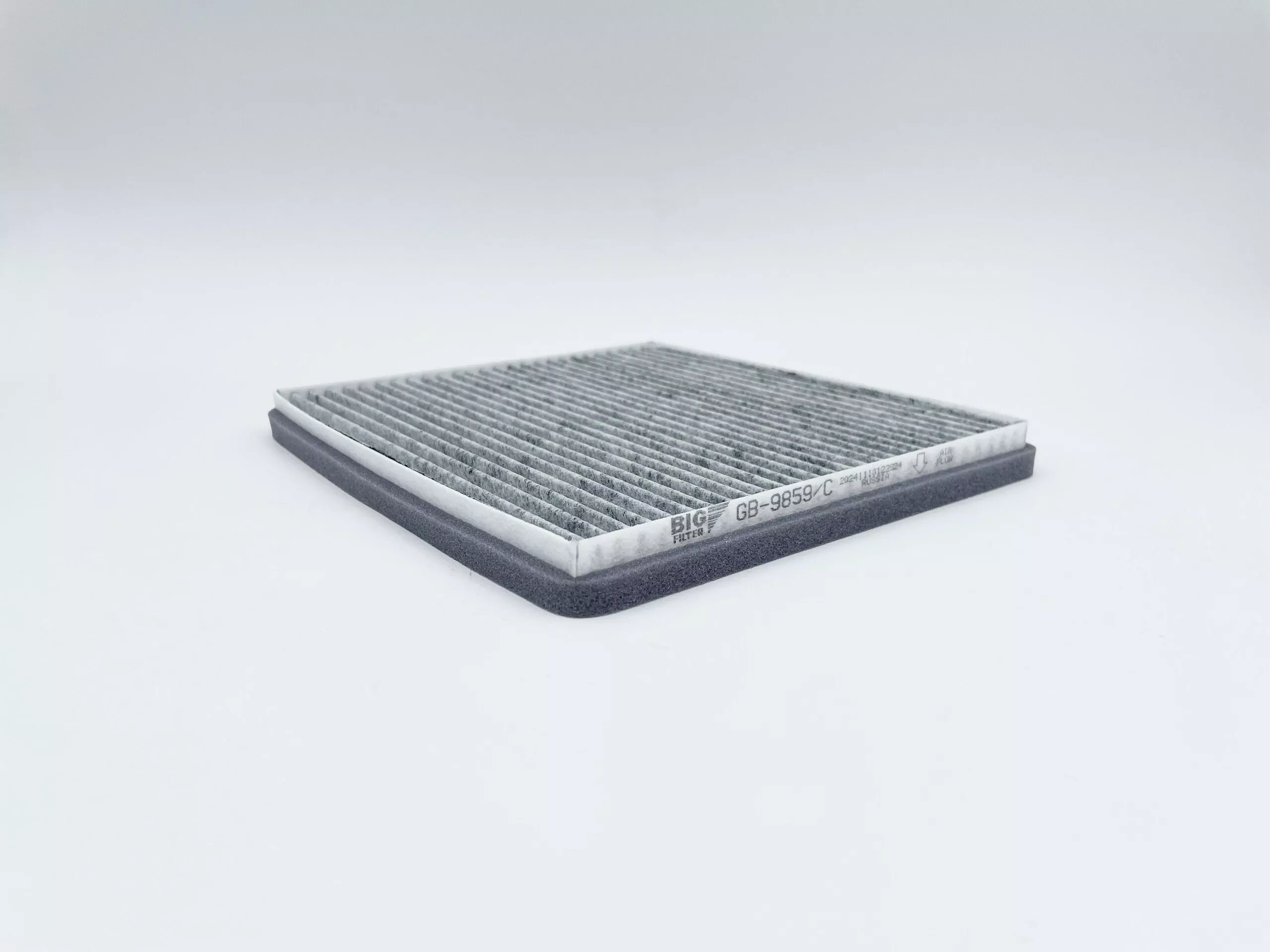

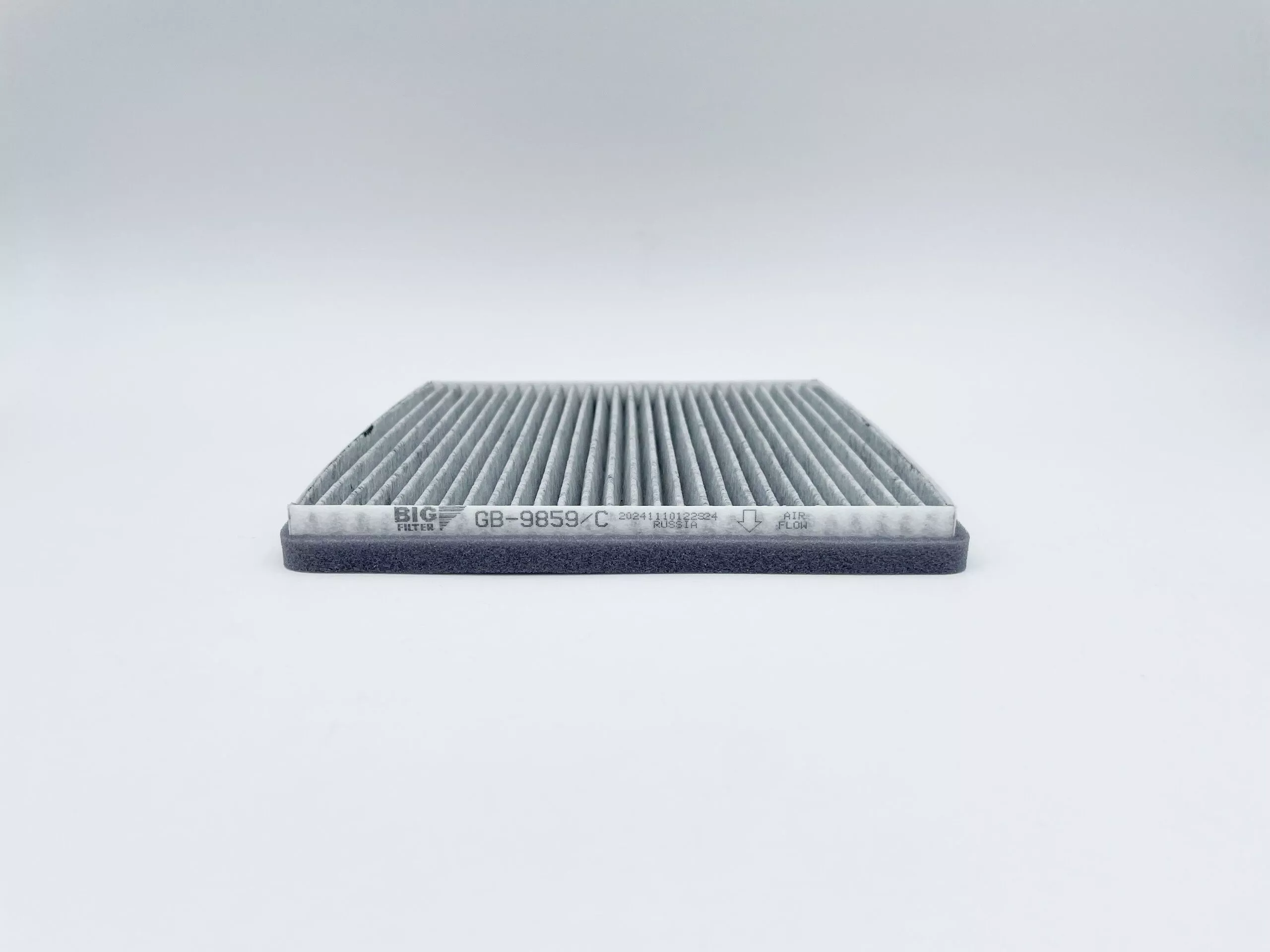

Attention! This photo is for informational purposes only. Differences from the posted image are allowed, which do not affect the quality and functionality of the product

Buy on marketplaces:

Applicability

Attention! The manufacturer is not liable for any consequences resulting from the use of products outside the specified application range

BYD

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 473QB 79(107) 1.5 473QB 79(107)	04/11	⇒	08/14	i Carbon
1.5 4G15S 70(95) 1.5 4G15S 70(95)	04/11	⇒	08/14	i Carbon
1.6 4G18 74(100) 1.6 4G18 74(100)	02/07	⇒	08/14	i Carbon

CHERY

Sweet (S11)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
0.8 SQR372 38(51) 0.8 SQR372 38(51)	01/03	⇒	12/07	i Carbon
1.1 SQR472F 50(68) 1.1 SQR472F 50(68)	01/03	⇒	12/07	i Carbon

Tiggo (FL)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.6 SQRE4G16 93(126) 1.6 SQRE4G16 93(126)	08/13	⇒	12/16	i Carbon
1.8 SQR481FC 97(132) 1.8 SQR481FC 97(132)	06/15	⇒	12/16	i Carbon
2.0 SQR484F 100(136) 2.0 SQR484F 100(136)	08/13	⇒	12/16	i Carbon

Tiggo (T11)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.6 SQR481F 88(119) 1.6 SQR481F 88(119)	08/12	⇒	07/13	i Carbon
1.8 481FC 97(132) 1.8 481FC 97(132)	11/08	⇒	07/12	i Carbon
2.0 4G63 92(125) 2.0 4G63 92(125)	01/06	⇒	10/08	i Carbon
2.0 SQR 484F 100(136) 2.0 SQR 484F 100(136)	01/06	⇒	07/13	i Carbon
2.4 4G64 95(129) 2.4 4G64 95(129)	11/05	⇒	10/08	i Carbon

GEELY

Emgrand 7

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 JLY-4G15 76(103) 1.5 JLY-4G15 76(103)	03/19	⇒	07/20	i Carbon
1.5 JLY-4G15 79(106) 1.5 JLY-4G15 79(106)	05/16	⇒	10/18	i Carbon
1.8 JLY-4G18 95(129) 1.8 JLY-4G18 95(129)	05/16	⇒	10/18	i Carbon
1.8 JLY-4G18 98(133) 1.8 JLY-4G18 98(133)	09/18	⇒	07/20	i Carbon

Emgrand EC7

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 JLB-4G15 68(98) 1.5 JLB-4G15 68(98)	07/12	⇒	03/17	i Carbon
1.8 JLY-4G18 93(126) 1.8 JLY-4G18 93(126)	07/12	⇒	03/17	i Carbon

Vision (FC)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 JL4G18 98(133) 1.8 JL4G18 98(133)	01/19	⇒		i Carbon

LIFAN

Solano (620)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 LF479Q2 76(103) 1.5 LF479Q2 76(103)	09/14	⇒	10/16	i Carbon
1.6 LF481Q3 78(106) 1.6 LF481Q3 78(106)	03/10	⇒	08/15	i Carbon
1.8 LFB479Q 92(125) 1.8 LFB479Q 92(125)	12/12	⇒	02/16	i Carbon

Solano (630)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 LF479Q2-B 74(100) 1.5 LF479Q2-B 74(100)	09/16	⇒	04/22	i Carbon
1.8 LFB479Q 98(133) 1.8 LFB479Q 98(133)	11/17	⇒	04/22	i Carbon

X60

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 LFB479Q 94(128) 1.8 LFB479Q 94(128)	08/12	⇒	04/22	i Carbon

X70

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
2.0 LF483Q 100(136) 2.0 LF483Q 100(136)	05/18	⇒	04/22	i Carbon

SCION

tC (ANT10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
2.4 2AZ-FE 118(160) 2.4 2AZ-FE 118(160)	01/04	⇒	09/10	i Carbon

xA (NCP61)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	01/04	⇒	12/06	i Carbon

xB (NCP30)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 79(108) 1.5 1NZ-FE 79(108)	06/03	⇒	12/06	i Carbon

SWM

G01

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5T SWD15T 102(139) 1.5T SWD15T 102(139)	08/18	⇒		i Carbon

G01F

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5T SWD15T 102(139) 1.5T SWD15T 102(139)	11/18	⇒		i Carbon

G05 Pro

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5T SWD15T 102(139) 1.5T SWD15T 102(139)	06/22	⇒		i Carbon

TAGAZ

Vortex Tingo

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 SQR 481FC 97(132) 1.8 SQR 481FC 97(132)	07/10	⇒	01/14	i Carbon

TOYOTA

Allex (E120)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	01/01	⇒	09/06	i Carbon
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	01/01	⇒	09/06	i Carbon
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	01/01	⇒	09/06	i Carbon
1.8 2ZZ-GE 140(190) 1.8 2ZZ-GE 140(190)	01/01	⇒	09/06	i Carbon

Allion I (T240)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	12/01	⇒	05/07	i Carbon
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	12/01	⇒	05/07	i Carbon
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	12/01	⇒	05/07	i Carbon
2.0 1AZ-FSE 112(152) 2.0 1AZ-FSE 112(152)	12/01	⇒	05/07	i Carbon

bB I (NCP30)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	01/00	⇒	11/05	i Carbon
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	03/00	⇒	11/05	i Carbon

Caldina III (T240)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	09/02	⇒	06/07	i Carbon
2.0 1AZ-FSE 112(152) 2.0 1AZ-FSE 112(152)	09/02	⇒	06/07	i Carbon
2.0 GT 3S-GTE 191(260) 2.0 GT 3S-GTE 191(260)	09/02	⇒	05/07	i Carbon

Echo (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	04/03	⇒	08/05	i Carbon
1.5 1NZ-FE 79(108) 1.5 1NZ-FE 79(108)	08/99	⇒	01/06	i Carbon
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	08/99	⇒	12/05	i Carbon

Funcargo (XP20)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	08/99	⇒	09/05	i Carbon
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	08/99	⇒	09/05	i Carbon
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	08/99	⇒	09/05	i Carbon

Isis (XM10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 VVT-i 1ZZ-FE 97(132) 1.8 VVT-i 1ZZ-FE 97(132)	07/04	⇒	12/10	i Carbon
1.8 VVT-i 2ZR-FAE 106(144) 1.8 VVT-i 2ZR-FAE 106(144)	09/09	⇒	12/17	i Carbon
2.0 1AZ-FSE 114(155) 2.0 1AZ-FSE 114(155)	09/04	⇒	08/09	i Carbon
2.0 VVT-i 3ZR-FAE 111(151) 2.0 VVT-i 3ZR-FAE 111(151)	09/09	⇒	12/17	i Carbon

ist I (XP60)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	05/04	⇒	07/07	i Carbon
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	05/05	⇒	07/07	i Carbon

Platz (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.0 1SZ-FE 51(70) 1.0 1SZ-FE 51(70)	08/99	⇒	10/05	i Carbon
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	08/99	⇒	10/05	i Carbon
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	08/99	⇒	10/05	i Carbon

Porte I (NP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	07/04	⇒	06/12	i Carbon
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	07/04	⇒	06/12	i Carbon

Premio I (T240)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	06/01	⇒	05/07	i Carbon
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	06/01	⇒	05/07	i Carbon
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	12/01	⇒	05/07	i Carbon
2.0 1AZ-FSE 112(152) 2.0 1AZ-FSE 112(152)	12/01	⇒	05/07	i Carbon

Probox/Succeed (XP50, XP160)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	06/02	⇒	09/14	i Carbon
1.4 DT 1ND-TV 53(72) 1.4 DT 1ND-TV 53(72)	06/02	⇒	09/14	i Carbon
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	06/02	⇒		i to 08.2014. Carbon
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	06/02	⇒		i to 08.2014. Carbon

Raum II (Z20)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	04/03	⇒	04/11	i Carbon
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	04/03	⇒	04/11	i Carbon

RAV 4 II (CA20)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	06/00	⇒	02/06	i Carbon
2.0 1AZ-FE 110(150) 2.0 1AZ-FE 110(150)	05/00	⇒	02/06	i Carbon
2.0 D-4D 1CD-FTV 84(114) 2.0 D-4D 1CD-FTV 84(114)	07/01	⇒	03/06	i Carbon
2.4 2AZ-FE 122(166) 2.4 2AZ-FE 122(166)	05/00	⇒	11/05	i Carbon

Sienta I (NCP80)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	09/03	⇒	06/15	i Carbon
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	09/03	⇒	06/15	i Carbon

Vitz I (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.0 1SZ-FE 51(70) 1.0 1SZ-FE 51(70)	01/99	⇒	01/05	i Carbon
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	01/99	⇒	01/05	i Carbon
1.3 2SZ-FE 64(87) 1.3 2SZ-FE 64(87)	12/01	⇒	01/05	i Carbon
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	01/99	⇒	01/05	i Carbon

WiLL Cypha (XP70)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	10/02	⇒	08/05	i Carbon
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	10/02	⇒	08/05	i Carbon

WiLL Vi (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	01/00	⇒	12/01	i Carbon

WiLL VS (XE120)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	04/01	⇒	04/04	i Carbon
1.8 1ZZ-FE 100(136) 1.8 1ZZ-FE 100(136)	04/01	⇒	04/04	i Carbon
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	04/01	⇒	04/04	i Carbon
1.8 2ZZ-GE 140(190) 1.8 2ZZ-GE 140(190)	04/01	⇒	04/04	i Carbon

Wish I (XE10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	01/03	⇒	03/09	i Carbon
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	01/03	⇒	03/09	i Carbon
2.0 1AZ-FSE 114(155) 2.0 1AZ-FSE 114(155)	01/03	⇒	03/09	i Carbon

Yaris I (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.0 1SZ-FE 48(65) 1.0 1SZ-FE 48(65)	03/03	⇒	10/05	i Carbon. Country of vehicle manufacture Japan.
1.0 1SZ-FE 50(68) 1.0 1SZ-FE 50(68)	04/99	⇒	03/03	i Carbon. Country of vehicle manufacture Japan.
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	03/99	⇒	10/05	i Carbon. Country of vehicle manufacture Japan.
1.4 D-4D 1ND-TV 55(75) 1.4 D-4D 1ND-TV 55(75)	03/99	⇒	10/05	i Carbon. Country of vehicle manufacture Japan.
1.5 TS 1NZ-FE 78(106) 1.5 TS 1NZ-FE 78(106)	03/99	⇒	10/05	i Carbon. Country of vehicle manufacture Japan.

Numbers OEM

BYD	1014399800
CHERY	T118107910
GEELY	1017028953
GEELY	1061001246
LIFAN	B8121170
LIFAN	S8113110
TOYOTA	0897400820
TOYOTA	8713912010
TOYOTA	8713944010
TOYOTA	8713952010
TOYOTA	87139YZZ06
TOYOTA	87139YZZ17
TOYOTA	8856812020
TOYOTA	8856812030
TOYOTA	8856852010
TOYOTA	885685201083

Analogue

JS ASAKASHI	AC101B
JS ASAKASHI	AC101J
JS ASAKASHI	AC101JC
BOSCH	1987432084
BOSCH	1987435516
NAC	77190ST
NAC	7792ST
NAC	77190CH
AMD	AMDFC896
AMD	AMDFC896A
AMD	AMDFC896C
DOUBLE FORCE	DFC1828
DOUBLE FORCE	DFC1828C
SAKURA	CAC3300
SAKURA	CA3300
AZUMI	AC21101
AZUMI	AC21101B
AZUMI	AC21101C
MANN	CU1828
MANN	FP1828
MANN	CUK1828
SIBTEK	AC101C
SIBTEK	AC101
HENGST	E2930LC
HENGST	E2930LI
CORTECO	80001452
CORTECO	80001453
CARVILLE RACING	CRV1912
CARVILLE RACING	CRV55238
CARVILLE RACING	CRV1828
CARVILLE RACING	CRVC1828
CARVILLE RACING	CRVC55238
AVANTECH	CF0108
AVANTECH	CF0116
AVANTECH	CFC0108
AVANTECH	CFC0116
FORTECH	FS012
FORTECH	FS070
FORTECH	FS070C
SCT	SA1209
SPEEDMATE	SMCFJ002
NEVSKY FILTER	NF6147
NEVSKY FILTER	NF6147C
NEVSKY FILTER	NF6147CA
KNECHT/MAHLE	LA109
KNECHT/MAHLE	LA109A
KNECHT/MAHLE	LAK109
KNECHT/MAHLE	LAO109
FILTRON	K1183A
FILTRON	K1183
SUFIX	SS1009
SUFIX	SS1143
SUFIX	SSC1009
TOTACHI	TCA160
TOTACHI	TCA160AA
TOTACHI	TCA160K
TPARTS & OILS	0897400820TM
VIC	AC101E
VIC	AC101EX
NORDFIL	CN1081
NORDFIL	CN1081K
NORDFIL	CN1206
NORDFIL	CN1206K
U.F.I.	3426400
U.F.I.	5305000
U.F.I.	5426400
LYNX	LAC146
LYNX	LAC146C
LYNX	LAC105
LYNX	LAC105C
ZEKKERT	IF3235
ZEKKERT	IF3235K
ZEKKERT	IF3235P
GREEN FILTER	IF0250
DIFA	DIFA4551
DIFA	DIFA4551C
METACO	1010045
METACO	1010045C
BLUE PRINT	ADT32519
MILES	AFC1178
MILES	AFW1178
PURFLUX	AH160
PURFLUX	AHC160
RAF FILTER	RST001TOXY
RAF FILTER	RSTC001TOXY
UNIO	FLT40029
UNIO	FLT40029C
UNIO	FLT40050
DENSO	DCF239K
DENSO	DCF355P
DENSO	DCF383P
MARSHALL	MC9966
MASUMA	MC224
MASUMA	MC224CL
TATSUMI	TBD1033
GANZ	GIR03145
GANZ	GIR04356
MECAFILTER	EKR7122
MECAFILTER	ELR7122
GOODWILL	AG162CFC
GOODWILL	AG572CF

Analogs BIG FILTER* * filters that are similar in application

GB-9859

GB-9859/CA

With End Strip GB-9859/C

Choose parameters
