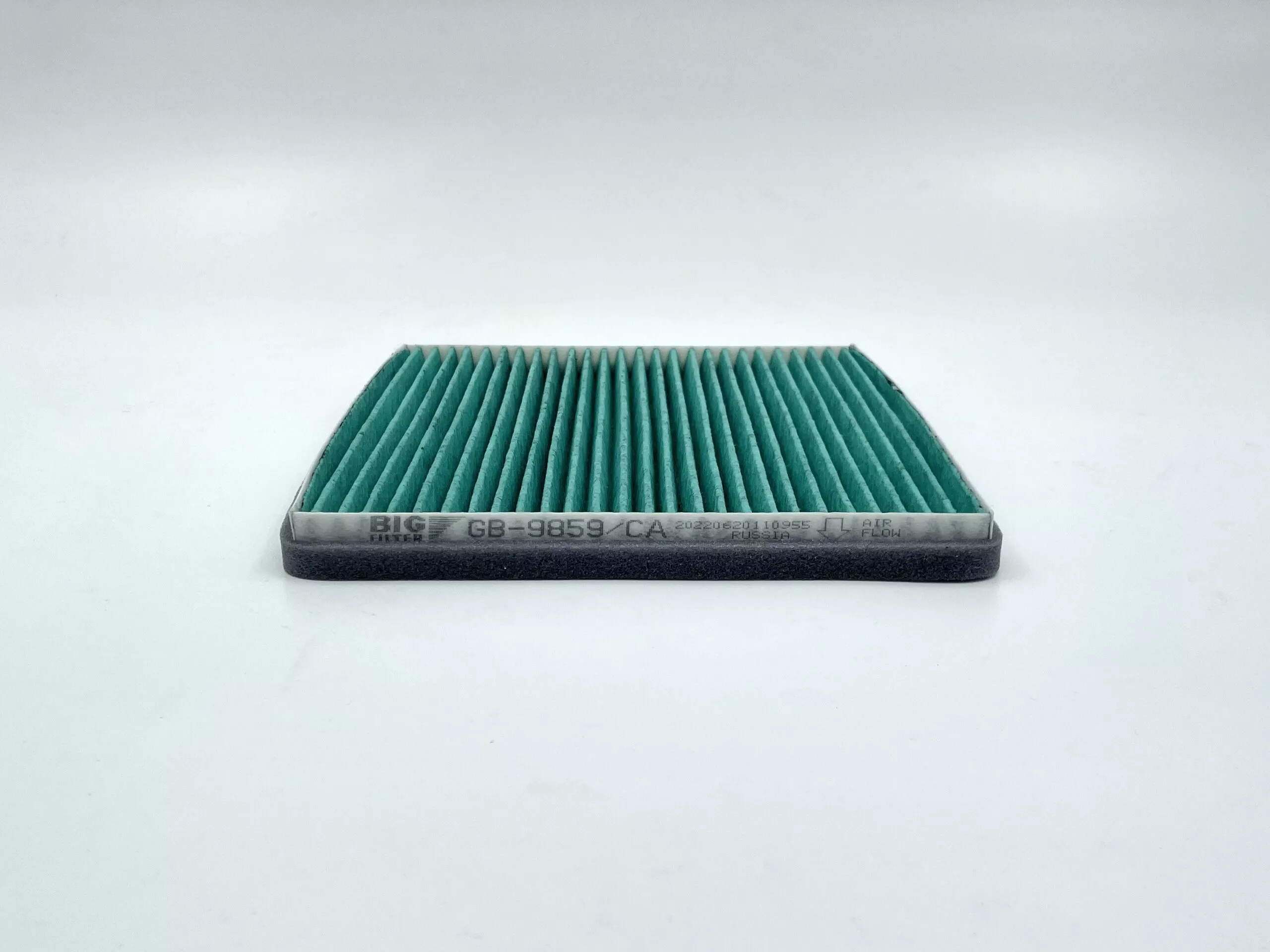

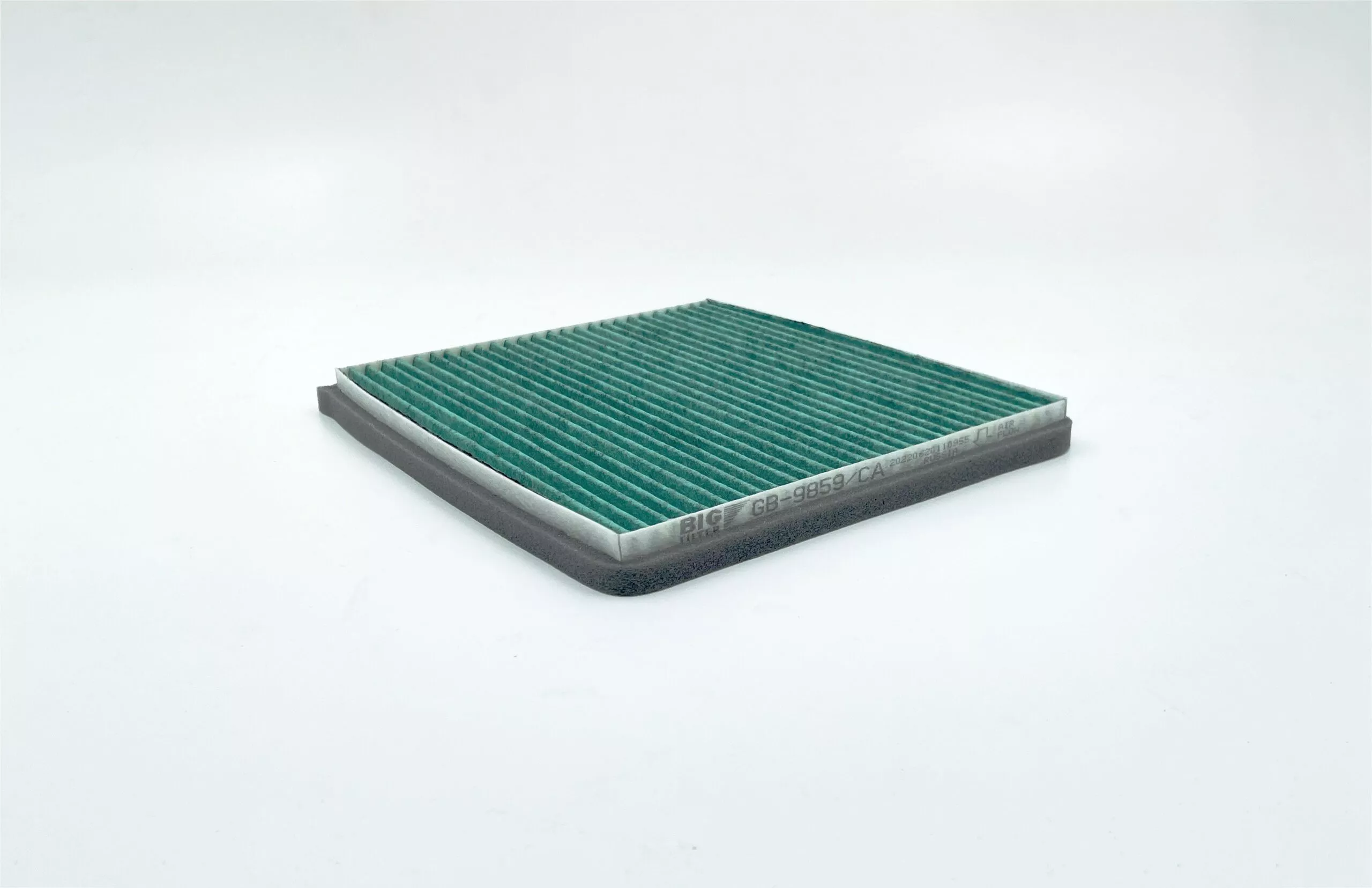

With End Strip GB-9859/CA

Group	Cabin Filter
Height, mm	18
Lenght, mm	198
Width, mm	217
Status	available
Comment	PM2.5 Antibacterial

Attention! The provided filter parameters are for reference only and do not take into account tolerances

Print Where buy

‹ ›

Attention! This photo is for informational purposes only. Differences from the posted image are allowed, which do not affect the quality and functionality of the product

Buy on marketplaces:

Applicability

Attention! The manufacturer is not liable for any consequences resulting from the use of products outside the specified application range

BYD

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 473QB 79(107) 1.5 473QB 79(107)	04/11	⇒	08/14	i Antibacterial
1.5 4G15S 70(95) 1.5 4G15S 70(95)	04/11	⇒	08/14	i Antibacterial
1.6 4G18 74(100) 1.6 4G18 74(100)	02/07	⇒	08/14	i Antibacterial

CHERY

Sweet (S11)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
0.8 SQR372 38(51) 0.8 SQR372 38(51)	01/03	⇒	12/07	i Antibacterial
1.1 SQR472F 50(68) 1.1 SQR472F 50(68)	01/03	⇒	12/07	i Antibacterial

Tiggo (FL)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.6 SQRE4G16 93(126) 1.6 SQRE4G16 93(126)	08/13	⇒	12/16	i Antibacterial
1.8 SQR481FC 97(132) 1.8 SQR481FC 97(132)	06/15	⇒	12/16	i Antibacterial
2.0 SQR484F 100(136) 2.0 SQR484F 100(136)	08/13	⇒	12/16	i Antibacterial

Tiggo (T11)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.6 SQR481F 88(119) 1.6 SQR481F 88(119)	08/12	⇒	07/13	i Antibacterial
1.8 481FC 97(132) 1.8 481FC 97(132)	11/08	⇒	07/12	i Antibacterial
2.0 4G63 92(125) 2.0 4G63 92(125)	01/06	⇒	10/08	i Antibacterial
2.0 SQR 484F 100(136) 2.0 SQR 484F 100(136)	01/06	⇒	07/13	i Antibacterial
2.4 4G64 95(129) 2.4 4G64 95(129)	11/05	⇒	10/08	i Antibacterial

GEELY

Emgrand 7

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 JLY-4G15 76(103) 1.5 JLY-4G15 76(103)	03/19	⇒	07/20	i Antibacterial
1.5 JLY-4G15 79(106) 1.5 JLY-4G15 79(106)	05/16	⇒	10/18	i Antibacterial
1.8 JLY-4G18 95(129) 1.8 JLY-4G18 95(129)	05/16	⇒	10/18	i Antibacterial
1.8 JLY-4G18 98(133) 1.8 JLY-4G18 98(133)	09/18	⇒	07/20	i Antibacterial

Emgrand EC7

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 JLB-4G15 68(98) 1.5 JLB-4G15 68(98)	07/12	⇒	03/17	i Antibacterial
1.8 JLY-4G18 93(126) 1.8 JLY-4G18 93(126)	07/12	⇒	03/17	i Antibacterial

Vision (FC)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 JL4G18 98(133) 1.8 JL4G18 98(133)	01/19	⇒		i Antibacterial

LIFAN

Solano (620)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 LF479Q2 76(103) 1.5 LF479Q2 76(103)	09/14	⇒	10/16	i Antibacterial
1.6 LF481Q3 78(106) 1.6 LF481Q3 78(106)	03/10	⇒	08/15	i Antibacterial
1.8 LFB479Q 92(125) 1.8 LFB479Q 92(125)	12/12	⇒	02/16	i Antibacterial

Solano (630)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 LF479Q2-B 74(100) 1.5 LF479Q2-B 74(100)	09/16	⇒	04/22	i Antibacterial
1.8 LFB479Q 98(133) 1.8 LFB479Q 98(133)	11/17	⇒	04/22	i Antibacterial

X60

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 LFB479Q 94(128) 1.8 LFB479Q 94(128)	08/12	⇒	04/22	i Antibacterial

X70

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
2.0 LF483Q 100(136) 2.0 LF483Q 100(136)	05/18	⇒	04/22	i Antibacterial

SCION

tC (ANT10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
2.4 2AZ-FE 118(160) 2.4 2AZ-FE 118(160)	01/04	⇒	09/10	i Antibacterial

xA (NCP61)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	01/04	⇒	12/06	i Antibacterial

xB (NCP30)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 79(108) 1.5 1NZ-FE 79(108)	06/03	⇒	12/06	i Antibacterial

SWM

G01

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5T SWD15T 102(139) 1.5T SWD15T 102(139)	08/18	⇒		i Antibacterial

G01F

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5T SWD15T 102(139) 1.5T SWD15T 102(139)	11/18	⇒		i Antibacterial

G05 Pro

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5T SWD15T 102(139) 1.5T SWD15T 102(139)	06/22	⇒		i Antibacterial

TAGAZ

Vortex Tingo

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 SQR 481FC 97(132) 1.8 SQR 481FC 97(132)	07/10	⇒	01/14	i Antibacterial

TOYOTA

Allex (E120)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	01/01	⇒	09/06	i Antibacterial
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	01/01	⇒	09/06	i Antibacterial
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	01/01	⇒	09/06	i Antibacterial
1.8 2ZZ-GE 140(190) 1.8 2ZZ-GE 140(190)	01/01	⇒	09/06	i Antibacterial

Allion I (T240)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	12/01	⇒	05/07	i Antibacterial
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	12/01	⇒	05/07	i Antibacterial
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	12/01	⇒	05/07	i Antibacterial
2.0 1AZ-FSE 112(152) 2.0 1AZ-FSE 112(152)	12/01	⇒	05/07	i Antibacterial

bB I (NCP30)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	01/00	⇒	11/05	i Antibacterial
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	03/00	⇒	11/05	i Antibacterial

Caldina III (T240)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	09/02	⇒	06/07	i Antibacterial
2.0 1AZ-FSE 112(152) 2.0 1AZ-FSE 112(152)	09/02	⇒	06/07	i Antibacterial
2.0 GT 3S-GTE 191(260) 2.0 GT 3S-GTE 191(260)	09/02	⇒	05/07	i Antibacterial

Echo (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	04/03	⇒	08/05	i Antibacterial
1.5 1NZ-FE 79(108) 1.5 1NZ-FE 79(108)	08/99	⇒	01/06	i Antibacterial
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	08/99	⇒	12/05	i Antibacterial

Funcargo (XP20)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	08/99	⇒	09/05	i Antibacterial
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	08/99	⇒	09/05	i Antibacterial
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	08/99	⇒	09/05	i Antibacterial

Isis (XM10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 VVT-i 1ZZ-FE 97(132) 1.8 VVT-i 1ZZ-FE 97(132)	07/04	⇒	12/10	i Antibacterial
1.8 VVT-i 2ZR-FAE 106(144) 1.8 VVT-i 2ZR-FAE 106(144)	09/09	⇒	12/17	i Antibacterial
2.0 1AZ-FSE 114(155) 2.0 1AZ-FSE 114(155)	09/04	⇒	08/09	i Antibacterial
2.0 VVT-i 3ZR-FAE 111(151) 2.0 VVT-i 3ZR-FAE 111(151)	09/09	⇒	12/17	i Antibacterial

ist I (XP60)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	05/04	⇒	07/07	i Antibacterial
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	05/05	⇒	07/07	i Antibacterial

Platz (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.0 1SZ-FE 51(70) 1.0 1SZ-FE 51(70)	08/99	⇒	10/05	i Antibacterial
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	08/99	⇒	10/05	i Antibacterial
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	08/99	⇒	10/05	i Antibacterial

Porte I (NP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	07/04	⇒	06/12	i Antibacterial
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	07/04	⇒	06/12	i Antibacterial

Premio I (T240)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	06/01	⇒	05/07	i Antibacterial
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	06/01	⇒	05/07	i Antibacterial
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	12/01	⇒	05/07	i Antibacterial
2.0 1AZ-FSE 112(152) 2.0 1AZ-FSE 112(152)	12/01	⇒	05/07	i Antibacterial

Probox/Succeed (XP50, XP160)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	06/02	⇒	09/14	i Antibacterial
1.4 DT 1ND-TV 53(72) 1.4 DT 1ND-TV 53(72)	06/02	⇒	09/14	i Antibacterial
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	06/02	⇒		i to 08.2014. Antibacterial
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	06/02	⇒		i to 08.2014. Antibacterial

Raum II (Z20)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	04/03	⇒	04/11	i Antibacterial
1.5 1NZ-FE 80(109) 1.5 1NZ-FE 80(109)	04/03	⇒	04/11	i Antibacterial

RAV 4 II (CA20)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	06/00	⇒	02/06	i Antibacterial
2.0 1AZ-FE 110(150) 2.0 1AZ-FE 110(150)	05/00	⇒	02/06	i Antibacterial
2.0 D-4D 1CD-FTV 84(114) 2.0 D-4D 1CD-FTV 84(114)	07/01	⇒	03/06	i Antibacterial
2.4 2AZ-FE 122(166) 2.4 2AZ-FE 122(166)	05/00	⇒	11/05	i Antibacterial

Sienta I (NCP80)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	09/03	⇒	06/15	i Antibacterial
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	09/03	⇒	06/15	i Antibacterial

Vitz I (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.0 1SZ-FE 51(70) 1.0 1SZ-FE 51(70)	01/99	⇒	01/05	i Antibacterial
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	01/99	⇒	01/05	i Antibacterial
1.3 2SZ-FE 64(87) 1.3 2SZ-FE 64(87)	12/01	⇒	01/05	i Antibacterial
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	01/99	⇒	01/05	i Antibacterial

WiLL Cypha (XP70)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	10/02	⇒	08/05	i Antibacterial
1.5 1NZ-FE 77(105) 1.5 1NZ-FE 77(105)	10/02	⇒	08/05	i Antibacterial

WiLL Vi (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.3 2NZ-FE 65(88) 1.3 2NZ-FE 65(88)	01/00	⇒	12/01	i Antibacterial

WiLL VS (XE120)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.5 1NZ-FE 81(110) 1.5 1NZ-FE 81(110)	04/01	⇒	04/04	i Antibacterial
1.8 1ZZ-FE 100(136) 1.8 1ZZ-FE 100(136)	04/01	⇒	04/04	i Antibacterial
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	04/01	⇒	04/04	i Antibacterial
1.8 2ZZ-GE 140(190) 1.8 2ZZ-GE 140(190)	04/01	⇒	04/04	i Antibacterial

Wish I (XE10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.8 1ZZ-FE 92(125) 1.8 1ZZ-FE 92(125)	01/03	⇒	03/09	i Antibacterial
1.8 1ZZ-FE 97(132) 1.8 1ZZ-FE 97(132)	01/03	⇒	03/09	i Antibacterial
2.0 1AZ-FSE 114(155) 2.0 1AZ-FSE 114(155)	01/03	⇒	03/09	i Antibacterial

Yaris I (XP10)

Model (volume) Engine code KW power (H.P.) Model type	Year of manufacture
1.0 1SZ-FE 48(65) 1.0 1SZ-FE 48(65)	03/03	⇒	10/05	i Antibacterial. Country of vehicle manufacture Japan.
1.0 1SZ-FE 50(68) 1.0 1SZ-FE 50(68)	04/99	⇒	03/03	i Antibacterial. Country of vehicle manufacture Japan.
1.3 2NZ-FE 64(87) 1.3 2NZ-FE 64(87)	03/99	⇒	10/05	i Antibacterial. Country of vehicle manufacture Japan.
1.4 D-4D 1ND-TV 55(75) 1.4 D-4D 1ND-TV 55(75)	03/99	⇒	10/05	i Antibacterial. Country of vehicle manufacture Japan.
1.5 TS 1NZ-FE 78(106) 1.5 TS 1NZ-FE 78(106)	03/99	⇒	10/05	i Antibacterial. Country of vehicle manufacture Japan.

Numbers OEM

BYD	1014399800
CHERY	T118107910
GEELY	1017028953
GEELY	1061001246
LIFAN	B8121170
LIFAN	S8113110
TOYOTA	0897400820
TOYOTA	8713912010
TOYOTA	8713944010
TOYOTA	8713952010
TOYOTA	87139YZZ06
TOYOTA	87139YZZ17
TOYOTA	8856812020
TOYOTA	8856812030
TOYOTA	8856852010
TOYOTA	885685201083

Analogue

JS ASAKASHI	AC101B
JS ASAKASHI	AC101J
JS ASAKASHI	AC101JC
BOSCH	1987432084
BOSCH	1987435516
NAC	7792ST
NAC	77190CH
NAC	77190ST
CORTECO	80001452
CORTECO	80001453
AMD	AMDFC896
AMD	AMDFC896A
AMD	AMDFC896C
DOUBLE FORCE	DFC1828
DOUBLE FORCE	DFC1828C
SIBTEK	AC101C
SIBTEK	AC101
AZUMI	AC21101
AZUMI	AC21101B
AZUMI	AC21101C
SCT	SA1209
FORTECH	FS012
FORTECH	FS070
FORTECH	FS070C
MANN	FP1828
MANN	CU1828
MANN	CUK1828
CARVILLE RACING	CRV1912
CARVILLE RACING	CRV55238
CARVILLE RACING	CRV1828
CARVILLE RACING	CRVC1828
CARVILLE RACING	CRVC55238
NEVSKY FILTER	NF6147
NEVSKY FILTER	NF6147C
NEVSKY FILTER	NF6147CA
AVANTECH	CF0108
AVANTECH	CF0116
AVANTECH	CFC0108
AVANTECH	CFC0116
HENGST	E2930LC
HENGST	E2930LI
ZEKKERT	IF3235
ZEKKERT	IF3235K
ZEKKERT	IF3235P
SPEEDMATE	SMCFJ002
KNECHT/MAHLE	LA109
KNECHT/MAHLE	LA109A
KNECHT/MAHLE	LAK109
KNECHT/MAHLE	LAO109
SUFIX	SS1009
SUFIX	SS1143
SUFIX	SSC1009
TOTACHI	TCA160
TOTACHI	TCA160AA
TOTACHI	TCA160K
NORDFIL	CN1081
NORDFIL	CN1081K
NORDFIL	CN1206
NORDFIL	CN1206K
U.F.I.	3426400
U.F.I.	5305000
U.F.I.	5426400
VIC	AC101E
VIC	AC101EX
TPARTS & OILS	0897400820TM
LYNX	LAC146
LYNX	LAC146C
LYNX	LAC105
LYNX	LAC105C
FILTRON	K1183
FILTRON	K1183A
GREEN FILTER	IF0250
MILES	AFC1178
MILES	AFW1178
DIFA	DIFA4551
DIFA	DIFA4551C
METACO	1010045
METACO	1010045C
BLUE PRINT	ADT32519
PURFLUX	AH160
PURFLUX	AHC160
MARSHALL	MC9966
RAF FILTER	RST001TOXY
RAF FILTER	RSTC001TOXY
GOODWILL	AG162CFC
GOODWILL	AG572CF
UNIO	FLT40029
UNIO	FLT40029C
UNIO	FLT40050
TATSUMI	TBD1033
DENSO	DCF239K
DENSO	DCF355P
DENSO	DCF383P
MASUMA	MC224
MASUMA	MC224CL
GANZ	GIR03145
GANZ	GIR04356
SAKURA	CA3300
SAKURA	CAC3300
MECAFILTER	EKR7122
MECAFILTER	ELR7122

Analogs BIG FILTER* * filters that are similar in application

GB-9859

GB-9859/C

With End Strip GB-9859/CA

Choose parameters
